Adult VP shunt systems GAV

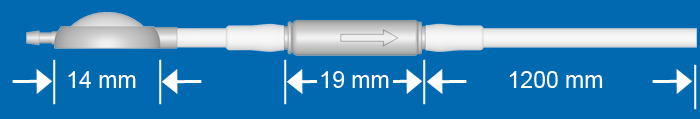

1. GAV Flushing with Reservoirs (6064 Series)

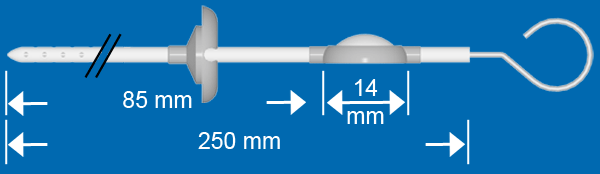

Flushing with resorvoir (with pes planus resorvoir) this model shunt has two parts and it needs to be one ligature. Body of valve and distal catheter are together.Resorvoir and right angle are on the ventricular catheter Ventriküler.Morover;stylet helps for the positioning.They have many kinds of this about the different pressure.
| LENGHT | MODEL NO | HORIZANTAL POSITION | VERTICAL POSITION | CODE |
| 160 cm below | FV 328 T | 5 cm H2O | 30 cm H2O | 6064 0530 |
| 160 - 180 cm standard | FV 329 T | 5 cm H2O | 35 cm H2O | 6064 0535 |
| 180 cm above | FV 330 T | 5 cm H2O | 40 cm H2O | 6064 0540 |
180 cm above FV 330 T 5 cm H2O 40 cm H2O 6064 0540
These models are not limited.If you see the details,please contact us.
(10-30 cmH2O, 10-40 cmH2O, 10-50 cmH2O)
2. GAV Flushing with Reservoirs(6061 Series)
Resorvior is near the distal catheter’s area.
Flushing with resorvoir (with pes planus resorvoir) this model shunt has two parts and it needs to be one ligature. Body of valve and distal catheter are together.Resorvoir and right angle are on the ventricular catheter Ventriküler.Morover;stylet helps for the positioning.They have many kinds of this about the different pressure.
| LENGHT | MODEL NO | HORIZANTAL POSITION | VERTICAL POSITION | CODE |
| 160 cm below | FV 340 T | 5 cm H2O | 30 cm H2O | 6061 0530 |
| 160 - 180 cm standard | FV 341 T | 5 cm H2O | 35 cm H2O | 6061 0535 |
| 180 cm above | FV 342 T | 5 cm H2O | 40 cm H2O | 6061 0540 |
These models are not limited.If you see the details,please contact us.
(10-30 cmH2O, 10-40 cmH2O, 10-50 cmH2O)

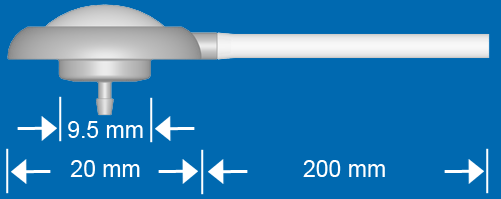

3. GAV Borehole with Reservoirs (6031 Series)
Flushing with resorvoir (with pes planus resorvoir) this model shunt has three parts and it needs to be two ligature. Morover;stylet helps for the positioning on the ventricular catheter.There is the 20 cm catheter of ligature on the Borehole resorvoir’s borehole at the cusp of disatl. Body of valve and distal catheter are together. They have many kinds of this about the different pressure.
| LENGHT | MODEL NO | HORIZANTAL POSITION | VERTICAL POSITION | CODE |
| 160 cm below | FV 334 T | 5 cm H2O | 30 cm H2O | 6031 0530 |
| 160 - 180 cm standard | FV 335 T | 5 cm H2O | 35 cm H2O | 6031 0535 |
| 180 cm above | FV 336 T | 5 cm H2O | 40 cm H2O | 6031 0540 |
These models are not limited.If you see the details,please contact us.
(10-30 cmH2O, 10-40 cmH2O, 10-50 cmH2O)
4. GAV Sprung with Reservoirs (6033 Serisi)
Sprung* (Borehole) with reservoir shunt has three parts and it needs to be two ligature. Morover;stylet helps for the positioning on the ventricular catheter.There is the 20 cm catheter of ligature on the Borehole resorvoir’s borehole at the cusp of disatl. Body of valve and distal catheter are together. They have many kinds of this about the different pressure.

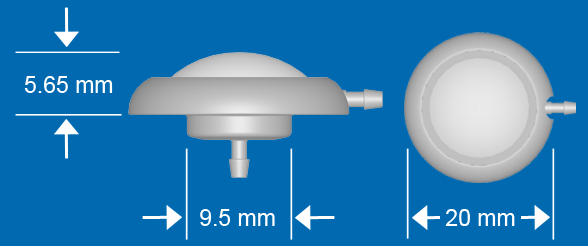

*Sprung Reservoirs:
Pumping through the valves is possible by the single direction closing mechanism under the sprung reservoir.This mechanism do not allow the flowing through the ventricüler catheter when there is a pumping.Also,Every press on the reservoir pumps the 0.8 ml BOS averagely.Pedestal of reservoir is covered with titanium and for this reason there is no risk to maked a hole with pin.
| LENGHT | MODEL NO | HORIZANTAL POSITION | VERTICAL POSITION | CODE |
| 160 cm below | FV 346 T | 5 cm H2O | 30 cm H2O | 6033 0530 |
| 160 - 180 cm standard | FV 347 T | 5 cm H2O | 35 cm H2O | 6033 0535 |
| 180 cm above | FV 348 T | 5 cm H2O | 40 cm H2O | 6033 0540 |
These models are not limited.If you see the details,please contact us.
5. GAV with no Reservoirs(6020 Series)

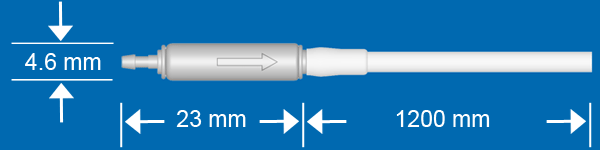

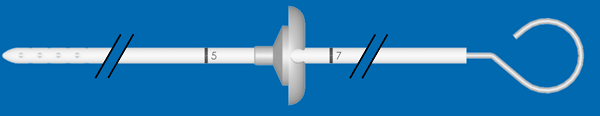

Flushing with no resorvoir this model shunt has two parts and it needs to be one ligature. Body of valve and distal catheter are together. .Resorvoir and right angle are on the ventricular catheter Ventriküler.Morover;stylet helps for the positioning.They have many kinds of this about the different pressure.
| LENGHT | MODEL NO | HORIZANTAL POSITION | VERTICAL POSITION | CODE |
| 160 cm below | FV 322 T | 5 cm H2O | 30 cm H2O | 6020 0530 |
| 160 - 180 cm standard | FV 323 T | 5 cm H2O | 35 cm H2O | 6020 0535 |
| 180 cm above | FV 324 T | 5 cm H2O | 40 cm H2O | 6020 0540 |
